COATING THICKNESS GUAGE

COATING THICKNESS GUAGE
COATING THICKNESS GUAGE
Product Code : 22
Product Description

Our firm, Kusum Electrical Industries Ltd., has an impactful existence in the market as a trader, exporter and importer of Coating Thickness Gauge. The offered gauge is made of superior quality electrical components and by the implementation of advanced technology for gaining durability and accuracy in functioning. Further, the structure of the gauge is lightweight, compact and easy to integrate with other components for easy operation. Our Coating Thickness Gauge has a long life and wide range of applications.

DIGITAL COATING THICKNESS GUAGE FOR MAGNETIC SUBSTRATE Model KM 117

Introduction

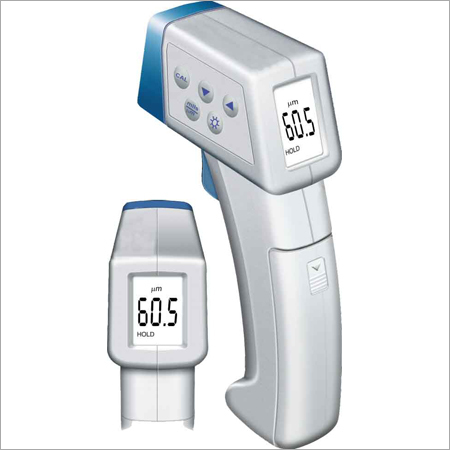

KM -117 is a portable, easy to use 3½ digit , compact - sized digital coating thickness gauge designed for simple one hand operation. Meter comes with Backlit LCD display, Auto - Hold function and Auto Power Off (15 seconds approx.) after releasing trigger to extend battery life.

Features

  • Measures coating thickness on magnetic substrate.
  • Ideal for coating inspections, paint applications and automotive finishes.
  • Portability and simple one hand operation.
  • Select the on - line display for one off MAX, MIN and MAX - MIN.
  • 2-point calibrations.
  • Auto-holding reading.
  • Auto-power off.
General Specifications
  • Display : 31/2 digit liquid crystal (LCD) with maximum reading of 1999.
  • Thickness Range : 0 to 40.0 mils (0 to 1000μm).
  • Display Resolution : 0.1 mils / 1μm.
  • Accuracy : ± 4 dgts on 0 to 7.8 mils
  • ± (3% + 4dgts) on 7.9 mils to 40 mils (200μm to 1000μm)
  • Low battery indication : The "Battery Symbol" is displayed when the battery voltage drops below the Operating level.
  • Response Time : 1 second.
  • Magnetic Indication : Yes
  • Testing Subtrates : Ferrous
  • Backlight : Yes
  • Operating Environment : 0°C to 50°C at < 75% R.H.
  • Storage Temperature : -20°C to 60°C, 0 to 80% R.H. with battery removed from meter.
  • Auto power off : Approx. 15 seconds.
  • Standby consuming current : < 6μA
  • Battery : Standard 9V battery
  • Dimensions : 148(H) X 105(W) x 42(D) mm.
  • Weight : Approx 157g (including battery).
Accessories
Ferrous plate, Standard Thickness Film, Battery, User’s manual & Carrying Case.
