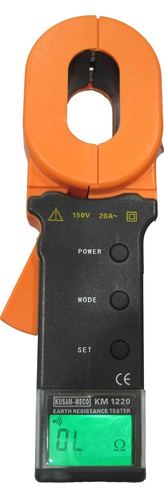

CLAMP-ON TYPE EARTH RESISTANCE TESTER

CLAMP-ON TYPE EARTH RESISTANCE TESTER
CLAMP-ON TYPE EARTH RESISTANCE TESTER
Product Code : 51
Brand Name : MODEL - KM 1120 / KM 1220
Product Description

CLAMP-ON TYPE EARTH RESISTANCE TESTER

ETCR Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc. When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster. KUSAM-MECO Clamp Earth Resistance Tester can measure the ground fault which can not be measured by traditional method, can apply in the occasion where traditional methods are unworkable; KUSAM-MECO Clamp Earth Resistance Tester measures the integrated value of ground resistance and resistance lead. Tester can measure the leakage current of ground wire.



GENERAL SPECIFICATIONS :

Display : 4 digit LCD Backlight Display.

Jaw Opening : 65 x 32 mm.

Span of Jaw : 32 mm.

Structural Feature : In the jaw way.

Operating temperature : -10oC ~ 55oC

Relative humidity : 10% ~ 90%RH

Protection grade : double insulation

Range selection : Automatic

External Magnetic Field : < 40A/m

External Electric Field : <1V/m

Sampling Time : 1 second

Measurement Resistance Frequency : >1kHz


Max. Resistance Measurement Resolution : 0.001W


Resistance Measurement Range : 0.010W ~ 1000W

Current Measurement Range : 0.00 - 20.0A (KM 1220)

Measured Current Frequency : 50 / 60Hz (KM 1220)

Storable Measurement Data : 99 units (KM 1220)


Setting range of Resistance Alarm Critical value : 1 - 199W (KM 1220)

Setting Range of current Alarm Critical Value : 1 - 499mA (KM 1220)

Power Supply : 6VDC ( 4 x 5 Alkaline Battery).

Dimension : 285 (L) X 85 (W) X 56 (T)mm.

Weight : Approx. 1160g. (including batteries)



ELECTRICAL SPECIFICATIONS :


RESISTANCE


CURRENT RANGE MEASUREMENT (KM 1220)


Measurement

Range (W)

Resolution

(W)

Accuracy

(W)

0.010~ 0.099

0.001

±(1% + 0.01W)

0.10~ 0.99

0.01

±(1% + 0.01W)

1.0 ~ 49.9

0.1

±(1% + 0.1W)

50.0 ~ 99.5

0.5

±(1.5% + 0.5W)

100 ~ 199

1

±(2% + 1W)

200 ~ 395

5

±(5% + 5W)

400 ~ 590

10

±(10% + 10W)

600 ~ 1000

20

±(20% + 20W)
