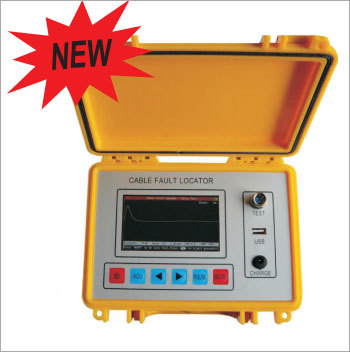

Cable Fault Locator

Cable Fault Locator
Cable Fault Locator
Product Code : KM-CFL-620
Product Description

Cable Fault Locator

“KUSAM-MECO” underground Cable Fault Pre-locator Model KM-CFL-620 is an automatic Cable Fault Locator which adopts ARM, FPGA & Dot Matrix Color LCD display Technology. This tester combines both pulse reflecting technology (TDR) & intelligent Bridge testing (Bridge) for measuring the exact fault location such as broken line, cross faults, earthing, poor insulation & poor contact of the lead covered cables as well as plastic cables. It is capable of giving IR tests in Bridge mode.It is a microprocessor based fault locator with a user friendly menu. It is easy to operate. It tests almost all power cables, telecom & signal cables. It has an English menu which is easy to understand & use. With Megameter & Ohmmeter it enables to test insulation resistance & loop resistance. It has USB Port for uploading test data to computer.

FEATURES :

  • Small size, light weight and ABS plastic housing which is ergronomically designed for easy use by user.
  • Menu driven simple operation.
  • Measurement maximum 8 km in selectable ranges.
  • Tests any type of copper telecom and signal cables.
  • Range, VOP and Gain are selected automatically.
  • Color LCD Display (480 x 280 dots).
  • Automatic testing mode.
  • Both pulse reflection (TDR) and intelligent bridge(Bridge) testing for open, short, or low insulation cable faults.
  • With mega meter it enables to test insulation resistance and loop resistance.
  • Six function keys and simple operation.
  • Manual testing function is also available.
  • With 4 GB USB Pen drive, it is easy to upload memory data to computer.
  • Rechargeable lithium battery with intelligent charger
  • Continued 8 hours operating time on internal battery.
  • Rugged construction and easy to carry on site.

GENERAL SPECIFICATIONS :

  • Display Readout : Color LCD : 480*280·
  • Continued operating time : 8 hours
  • Charging time : 3 hours
  • Power Supply : 7.4V Rechargeable Li-ion battery. Charging voltage 230V +/-10%, 50Hz, single phase.
  • Storage Temperature : -15°C ~ + 55°C; RH <85%RH.
  • Working Temperature : -15°C ~ + 55°C; RH <85%RH.
  • Dimension : 212 (L) × 170 (W) × 90 (H) mm (approx.)
  • Weight : 1.20 Kg Net (approx.)
