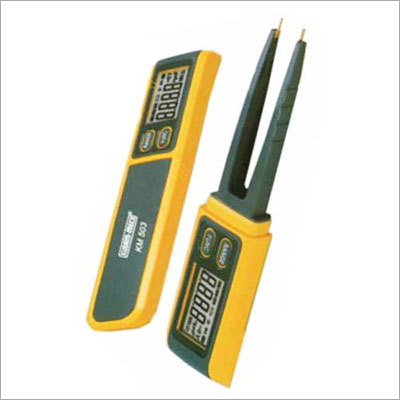

Auto-Scan Pen R-C Meter

Auto-Scan Pen R-C Meter
Auto-Scan Pen R-C Meter
Product Code : KM503
Product Description
Auto-Scan Pen R-C Meter

We Offer Digital Auto-Scan Pen R/C Meter. This pen R/C meter for SMD could fast precise measure small chip components.


  • Display : 3-¾ digits LCD display with max. reading 3999
  • Pollution degree : 2
  • Altitude : < 2000m
  • Operating Temperature : 0 - 40°C, <80% R.H. non-condensing
  • Storage Temperature : -10 ~ 60°C, < 70% RH, battery removed
  • Temperature Coefficient : 0.1 x (specified accuracy) / °C (<18°C or > 28°C)
  • Max. Voltage between terminals and earth ground : 50V DC or 36V AC rms.
  • Sample Rate : 3 times / sec for digital data
  • Over Range indication : LCD will display “OL”
  • Low battery indication : The “ ” is displayed when the battery is under the proper operation range
  • Auto power off : If there is no key been operated for 15 minutes, the meter will auto power off to save battery energy.
  • Diode Test
  • Power Source : 3.0V battery
  • Dimensions : 181(L) x 35(W) x 20(H) mm
  • Weight : Approx. 65g. (battery included)
