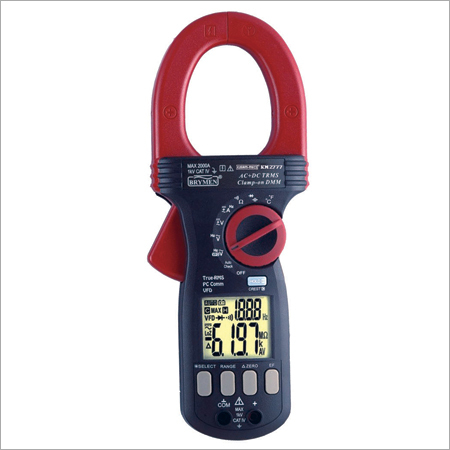

AC / DC TRMS Clamp-On Multimeter with VFD, EF-Dete

AC / DC TRMS Clamp-On Multimeter with VFD, EF-Dete
AC / DC TRMS Clamp-On Multimeter with VFD, EF-Dete
Product Code : Km 2777
Product Description

Reliably meeting clients requirements, we are a well known trader, importer and exporter of highly advanced AC / DC TRMS Clamp-On Multimeter with VFD, EF-Detection. Manufactured after years of research and development, the offered meter is completely reliable in measuring and providing accurate results. The electronic components with which the meter is manufactured are of certified-grade to assure safety and long life. Further, our AC / DC TRMS Clamp-On Multimeter with VFD, EF-Detection is highly demanded in the market for interactive display with easy input buttons.

AC / DC TRMS Clamp-On Multimeter with VFD, EF-Dete - KM 2777

Special Features

  • Auto Check TM Voltage & Ohms

  • VFD-V & VFD-Hz function

  • 5ms CREST-MAX capture mode (Peak Hold)

  • Auto ranging Relative -Zero mode

  • Display Hold function

  • EF-Detection (NCV)

  • Back light LCD Display

  • Auto Power Off

  • Diode Test & Continuity Test

  • PC Interface (Optional)

General Specifications

  • Sensing : TRMS sensing

  • Jaw Opening : 55mm max.

  • Display : 3-5/6 digits 6000 counts & 3½ digits 1,999 counts for Hz.

  • AC Current (Clamp on) (50Hz 400Hz) : 200A ~ 2000A

  • DC Current (Clamp on) : 200A ~ 2000A

  • DC + AC Current (Clamp on) (50Hz ~ 400Hz) : 200A ~ 2000A

  • DC Voltage : 6V ~ 1000V

  • AC Voltage (50Hz ~ 400Hz) : 6V ~ 1000V

  • AC + DC Voltage (50Hz ~400Hz) : 6V ~ 1000V

  • VFD  ACV (with Low Pass Filter) (10Hz ~ 420Hz) : 6V ~ 1000V

  • Auto-check TM _ACV (50Hz ~ 60Hz) : 6V ~ 1000V

  • Auto-check TM _DCV : 6V ~ 1000V

  • Hz Line Level Frequency : 10Hz ~ 1999Hz

  • Capacitance : 60nF ~ 2000 F

  • Ohm & Auto-check Tm _Ohm : 600 Ohm ~ 40 Mega Ohm

  • Temperature : -50°C ~ 1000°C; -58°F ~ 1832°F

  • Update Rate : 5 per second nominal

  • Polarity : Automatic

  • Low Battery : Below approx 2.4V

  • Operating Temperature : 0°C to 40°C

  • Relative Humidity : Maximum 80% R. H. for temperature upto 31°C decreasing linearly to 50% Relative Humidity at 40°C

  • Storage Temperature : -20°C to 60°C, < 80% R.H. (With battery removed)

  • Optional Accessories : USB interface kit BRUA-19X,

  • Altitude : Operating below 2000m

  • Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0°C--18°C or 28°C--40°C), or otherwise specified

  • Power supply : Standard 1.5V AAA Battery x 2.

  • Power Consumption : Typical 14mA for Current function, & 5.2mA for others.

  • APO Timing : Idle for 34 minutes

  • APO Consumption : 10 A typical

  • Dimension : 264(L) x 97(W) x 43(H) mm

  • Weight : Approx. 608gm.

Safety

  • Double insulation per IEC/EN61010-1 2 Ed., UL61010-1 2nd Ed., & CAN/CSA C22.2 No.61010.1-0.92 to Category CAT IV 1000V AC & DC.

  • Transient Protection : 12 kV (1.2/50ms surge)

  • Overload Protection : Clamp-on jaws : 2000A rms continuous "+" & COM Terminals (all other functions) : 1000V rms.

  • Pollution degree : 2

EMC: Meets EN61326-1:2006 (EN55022,EN61000-3-2,EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4,EN61000-4-5,EN61000-4-6, EN61000-4-8,EN61000-4-11) In an RF field of 3V/m : Capacitance function is not specified Other function ranges : Total Accuracy = Specified Accuracy + 200 digits Performance above 3V/m is not specified.

Trade Information
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
