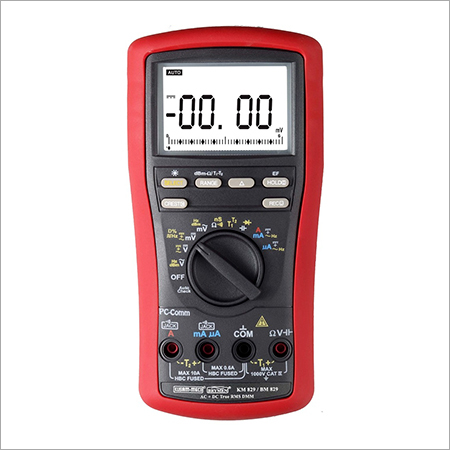

AC; AC+ DC TRUE RMS DIGITAL MULTIMETER WITH PC INTERFACE

AC;  AC+ DC TRUE RMS DIGITAL MULTIMETER WITH PC INTERFACE
AC; AC+ DC TRUE RMS DIGITAL MULTIMETER WITH PC INTERFACE
Product Code : 12
Brand Name : KM 829
Product Description

We are a well known exporter, importer and trader of best quality AC; AC+ DC True RMS Digital Multimeter With PC Interface. This multimeter is used in different industry specific applications with complete perfection owing to its advanced technology integration. The offered meter is made of superior quality raw materials to enhance their impact withstanding capacity and low rate of faults. Further, our  AC; AC+ DC True RMS Digital Multimeter With PC Interface is well recognized for its high level of accuracy and engineering excellence.

AC;  AC+ DC TRUE RMS DIGITAL MULTIMETER WITH PC INTERFACE

Model KM 829

SPECIAL FEATURES :

• Beep-Jack Audible & Visible Input  Warning

• Auto-Ranging

• Relative  Zero Mode

• PC Interface Capability

• Auto Check V-W;   Auto-Ranging

• Crest (Instantaneous  Peak  Hold)

• T1-T2  differential  Temperature  readings.

• Data Hold

FEATURES :

  • DC Voltage Basic Accuracy 0.08%
  • AC; AC+DC True RMS Conversion Frequency Bandwidth upto 20kHz (V) & 1kHz (A)
  • 4 Digit 10,000 counts large easy to read Backlight LCD display
  • Fast Measurements, 5/sec; Fully Auto-Ranging
  • Record Max/Min readings, Auto Ranging
  • NCV & Probe-Contact EF-Detection
  • dBm function with 20 selectable values
  • Lo-Z volts to drain Ghost Voltages (Auto Check Feature)
  • Logic & Line Level Frequency
  • Logic Level Duty Cycle Readings & Diode Tester
  • Fast Audible Continuity
  • Auto Power Off

GENERAL SPECIFICATIONS :

Sensing : AC, AC+DC True RMS

Display :

9999 Counts : ACV, DCV, Hz & nS

6000 Counts : mV, mA, mA, A, Ohm & Capacitance

Update Rate :

Digital Display : 5 per second nominal;

41 Segments Bar-graph : 60 per second max

Low Battery : Below approx 7V

Operating Temperature : 0°C to 45°C

Relative  Humidity : Max. 80%  R.H. for Temperature up to 31°C decreasing linearly to 50%  R.H. at 45°C

Pollution degree : 2

Storage Temperature : -20°C to 60°C, <80% R.H. (with battery removed)

Altitude : Operating below 2000m

Temperature Coefficient : nominal 0.15 x ( specified accuracy)/°C @ (0°C ~ 18°C or 28°C ~ 45°C), or otherwise specified

Power Consumption : 5mA typical

APO Timing : Idle for 30 minutes

APO Consumption : 50mA  typical

Power Supply : Single 9V battery

Weight : Approx. 635gm with holster

Dimension : 208(L) x 103(W) x 64.5(H) mm

SAFETY :

Double insulation per IEC61010-1 2nd Ed., En61010-1 2nd Ed., UL61010-1 2nd Ed., & CAN/CSA C22.2     No. 61010.1-0.92 to Category IV 1000V AC & V DC.
